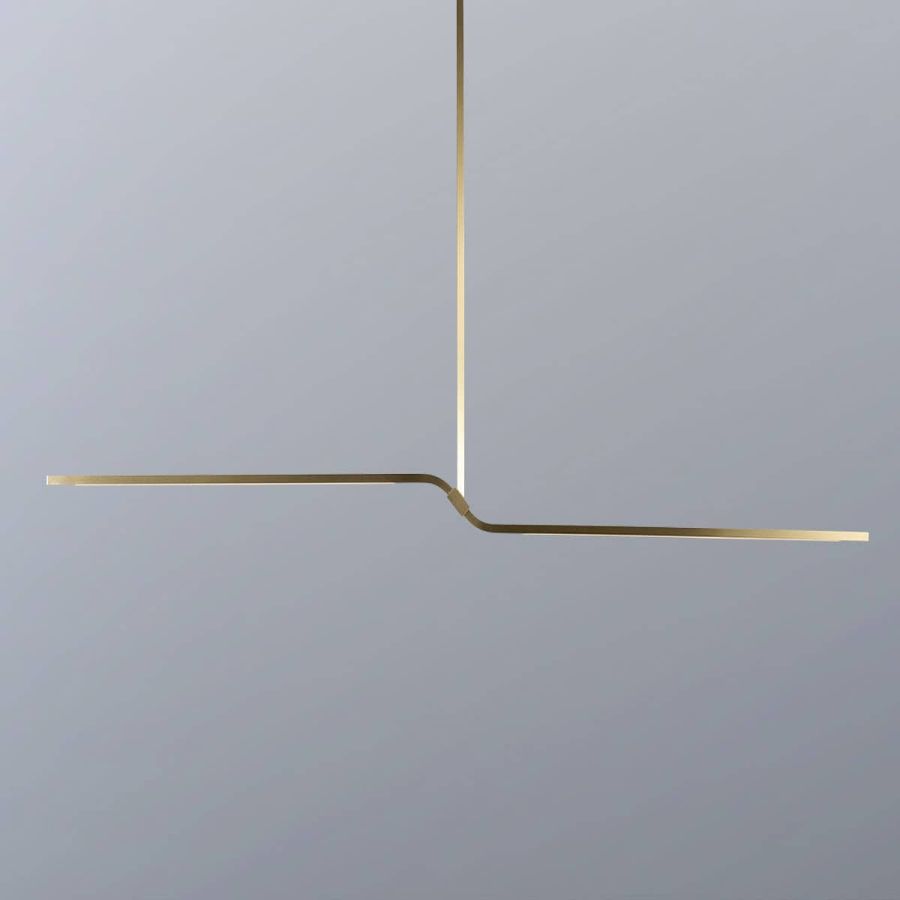

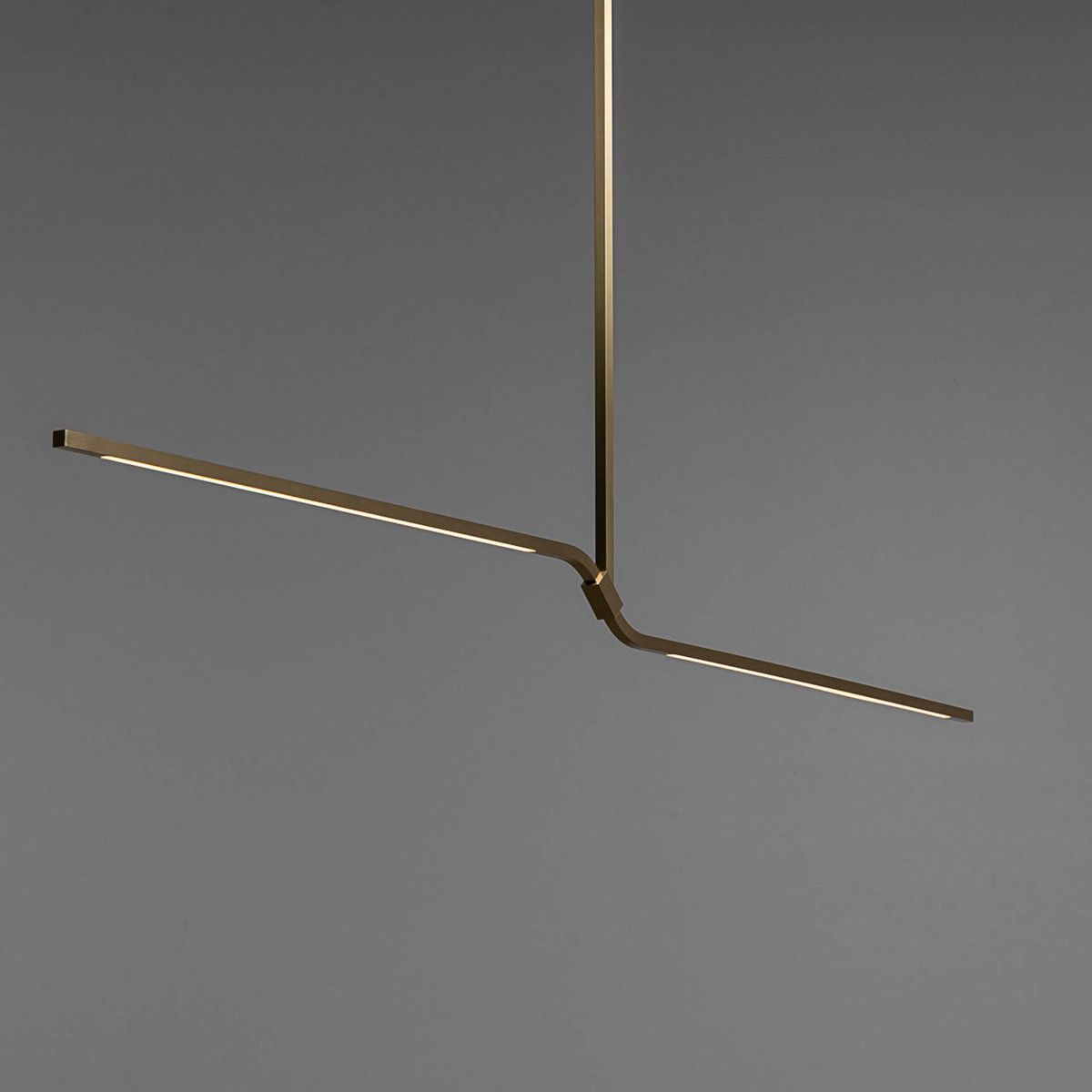

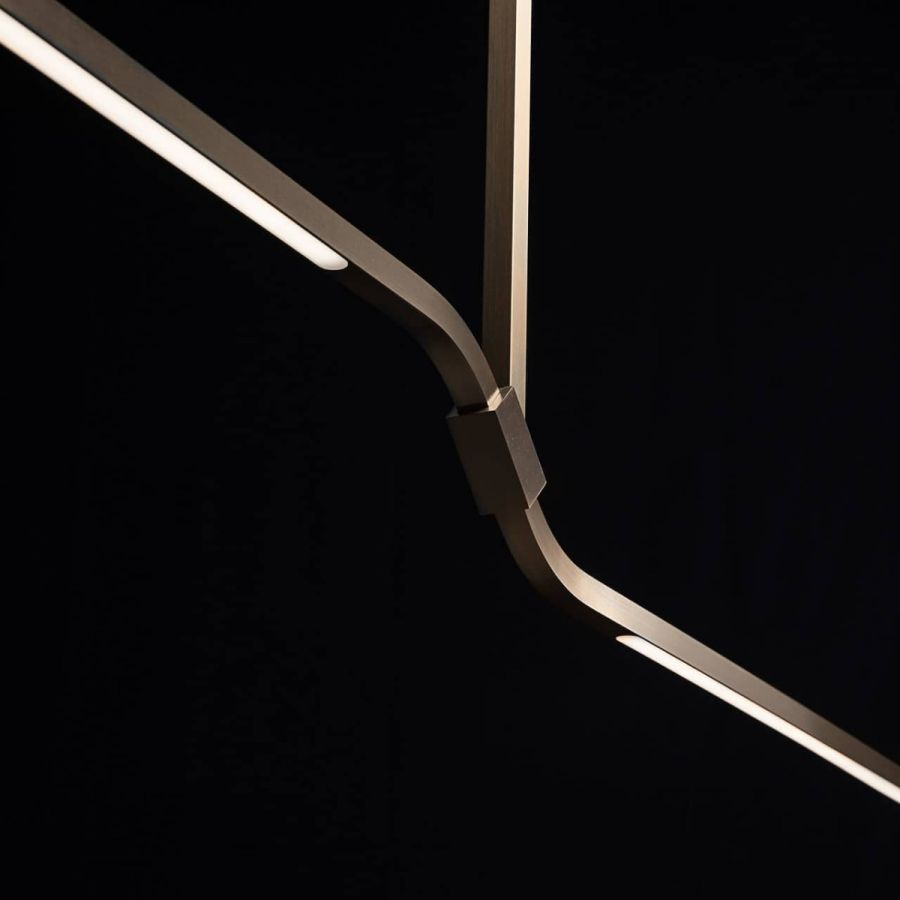

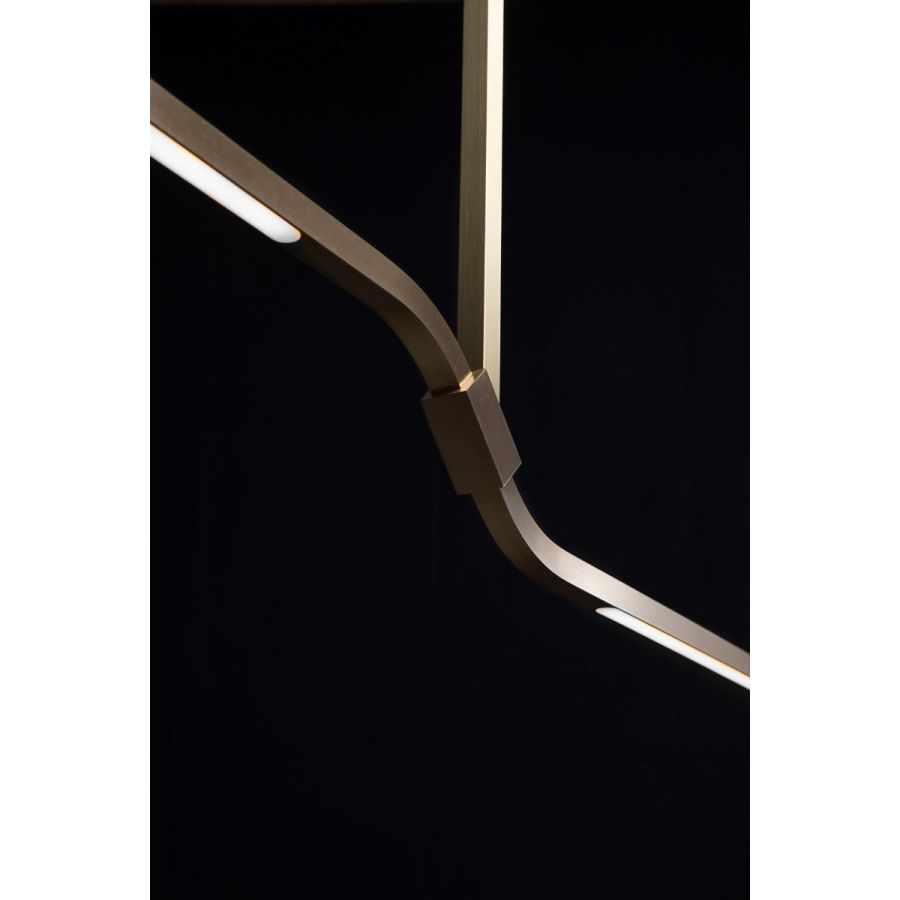

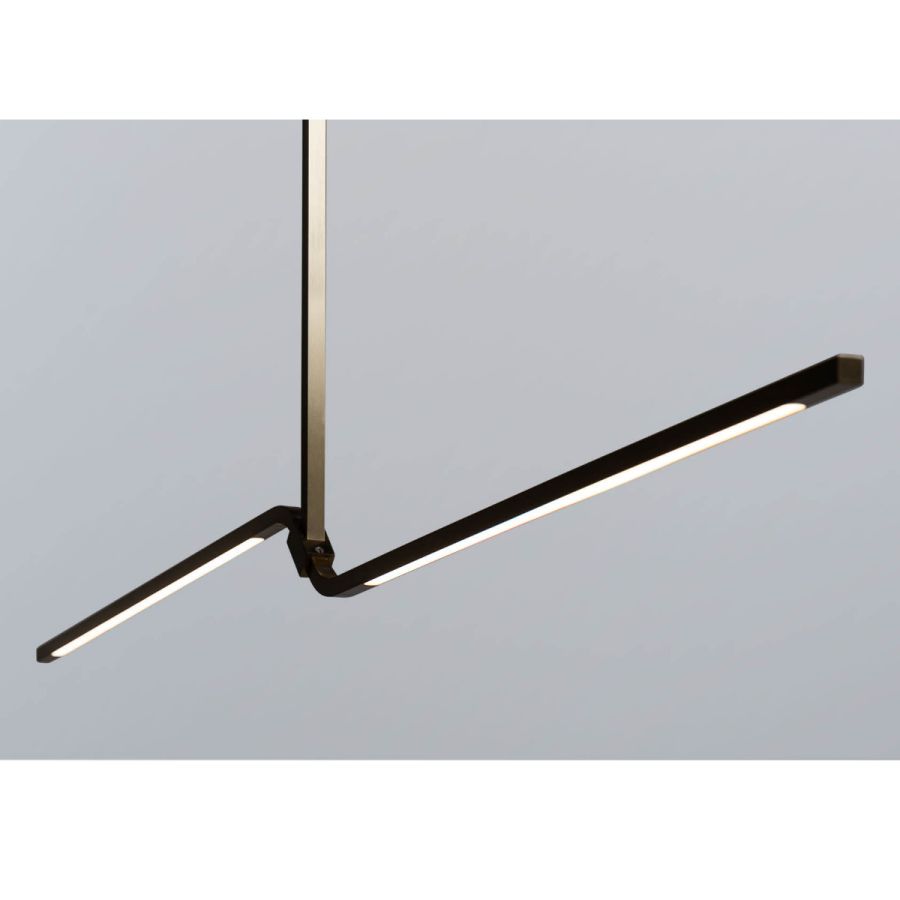

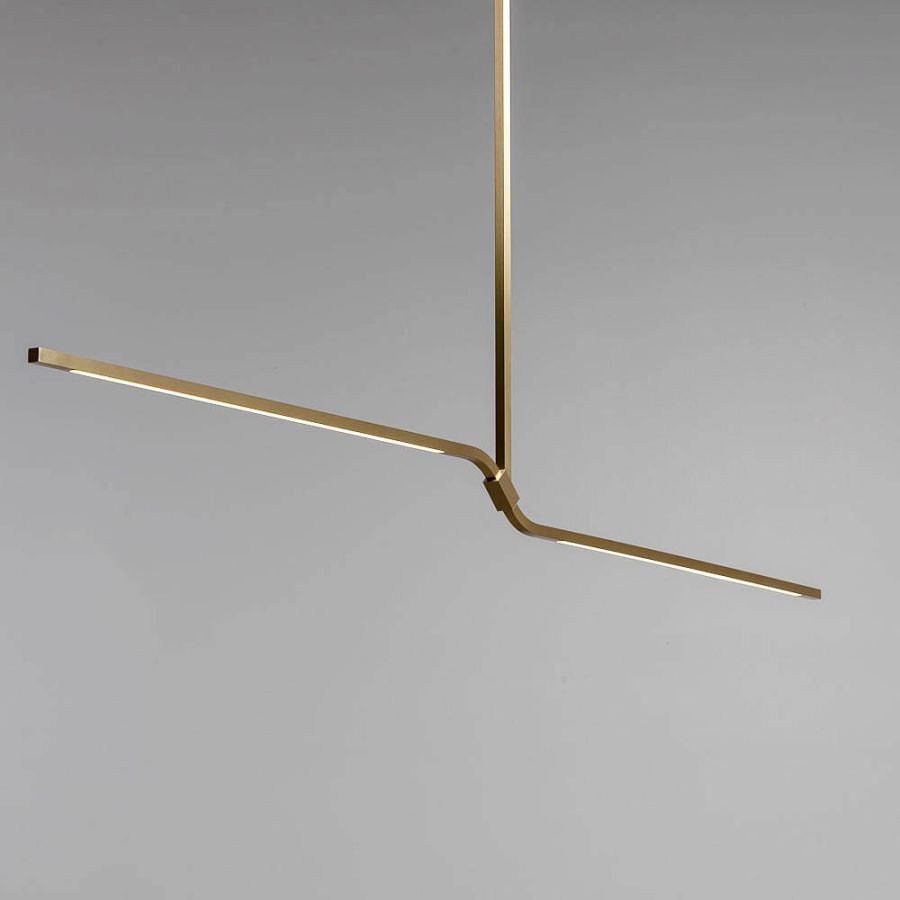

The Branch Pendant is a minimalist fixture featuring two levels of beautiful downlight.
The Branch Pendant's minimalist profile provides beautiful illumination along two planes and is the perfect pendant for any linear application.
This stylish yet minimal fixture is versatile to work in various décor settings.
The Branch operates on two levels while providing beautiful light for any linear application.
Modified Boyd Fixtures - Customized design solutions engineered for your project. Available in three sizes and made-to-order by hand in Colorado. The Branch Pendant, minimal pendant is offered at 5, 6, and 7-foot standard lengths.
Model:

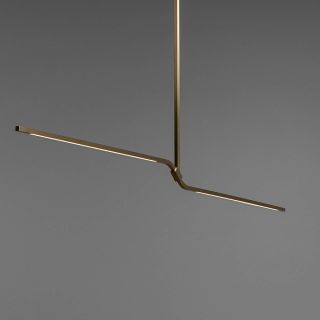

Art. 10746 (60”)
Width: cm.: 11.7 / inch. 4.62"
Length: cm.: 152 / inch. 60"
HOA Specify: cm.: 61 – 137 / inch. 24" - 54"
Net Weight: 12 lbs (5.5 kg)
Performance: LED 43 watt ~3300 lumens
Art. 10747 (72”)
Width: cm.: 11.7 / inch. 4.62"
Length: cm.: 182.9 / inch. 72"
HOA Specify: cm.: 61 – 137 / inch. 24" - 54"
Net Weight: 13 lbs (5.9 kg)
Performance: LED 50 watt ~3850 lumens

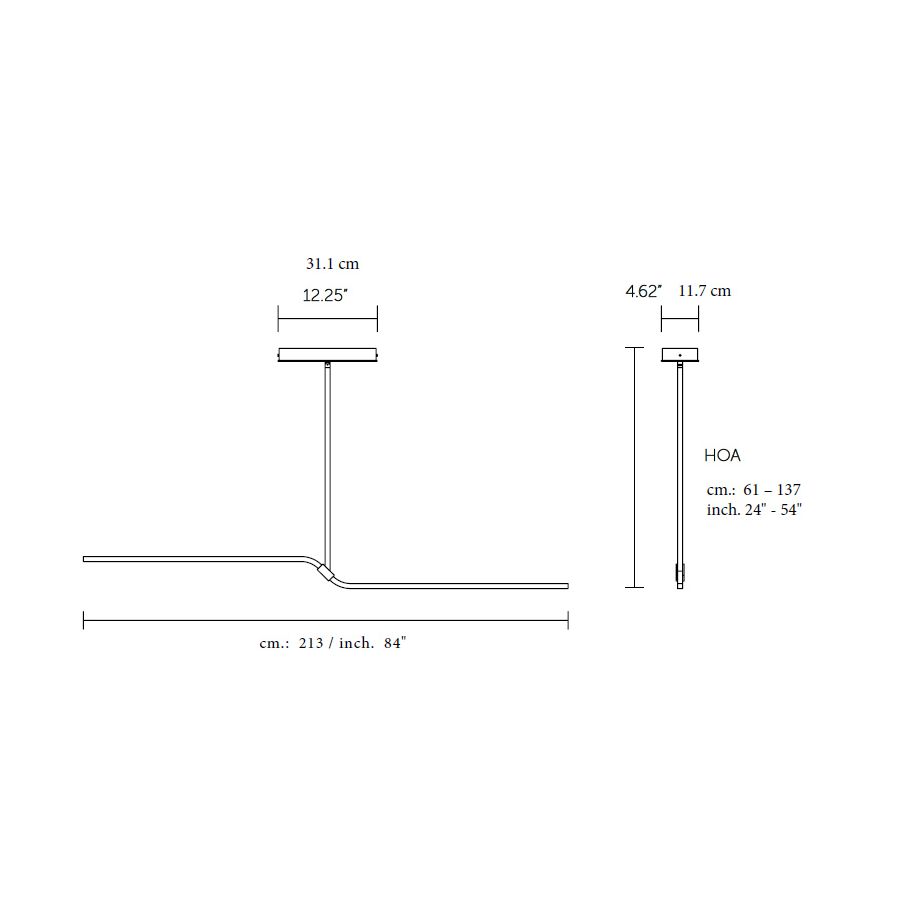

Art. 10748 (84”)
Width: cm.: 11.7 / inch. 4.62"
Length: cm.: 213 / inch. 84"
HOA Specify: cm.: 61 – 137 / inch. 24" - 54"
Net Weight: 14 lbs (96.3 kg)
Performance: LED 50 watt ~3850 lumens
Canopy: cm.: 31.1 x 11.7 x 4.1 / inch. 12.25 x 462” x 162”

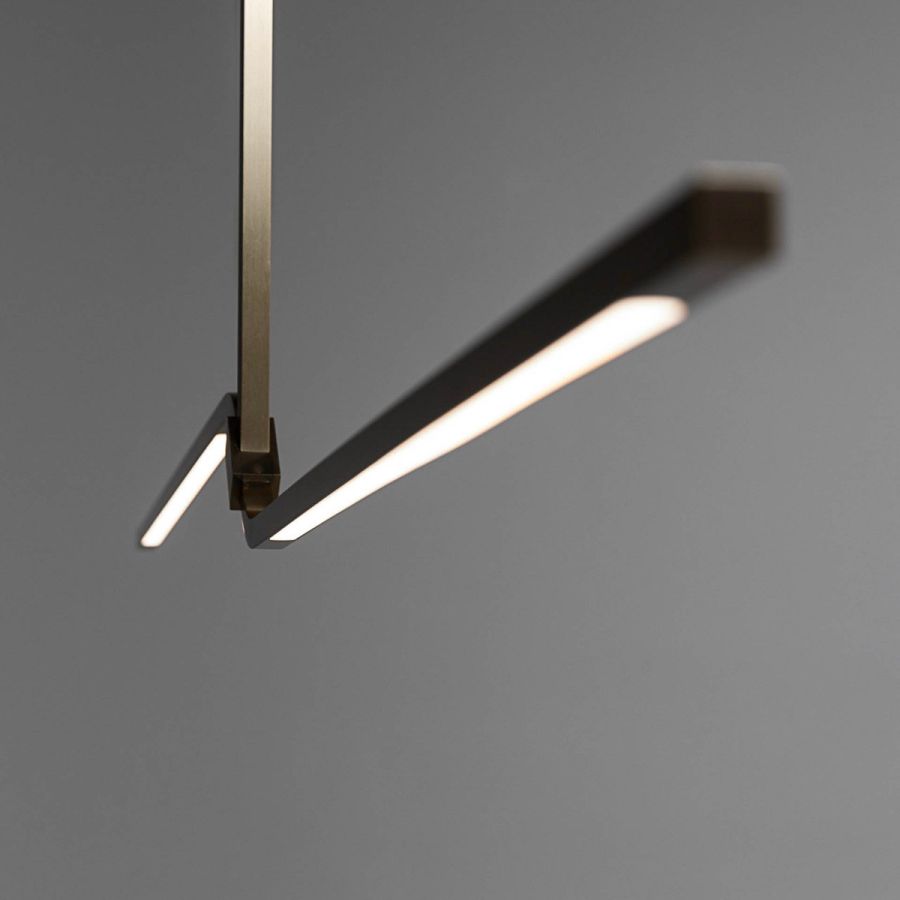

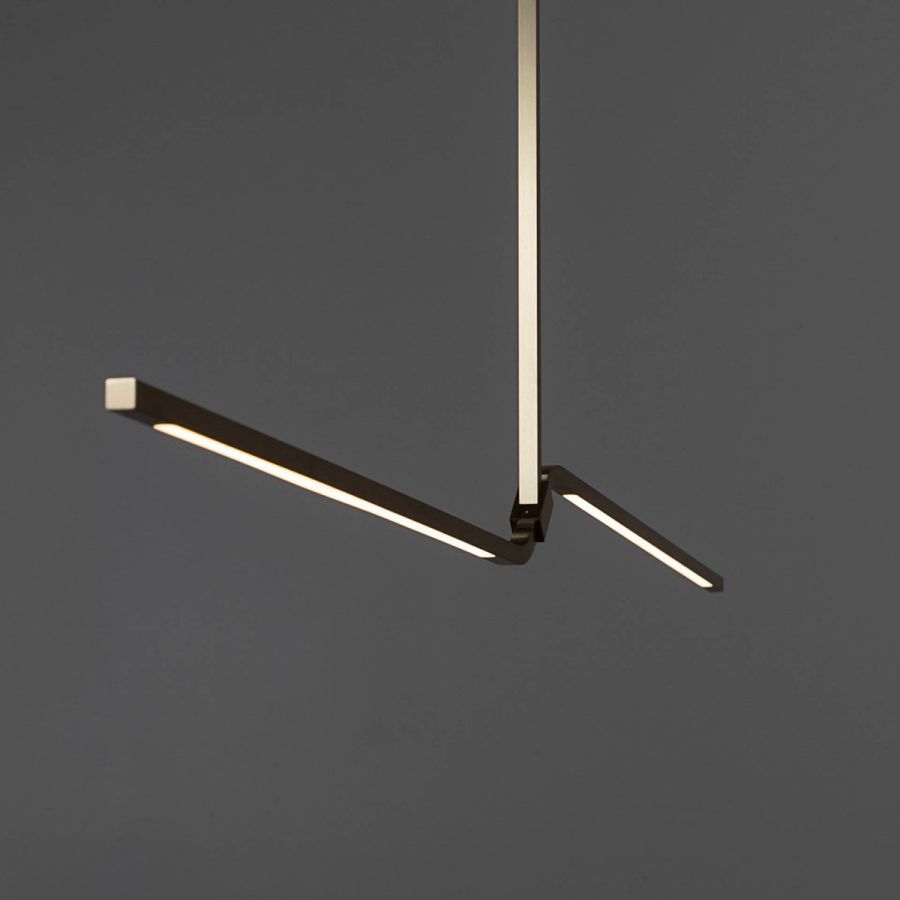

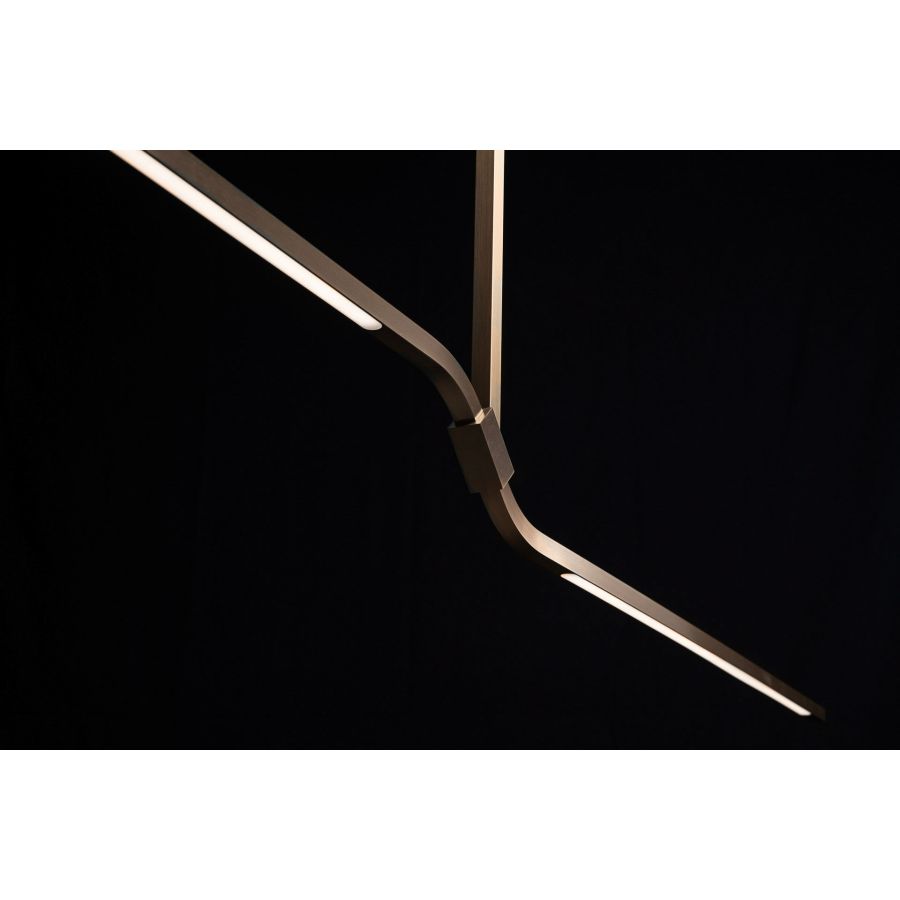

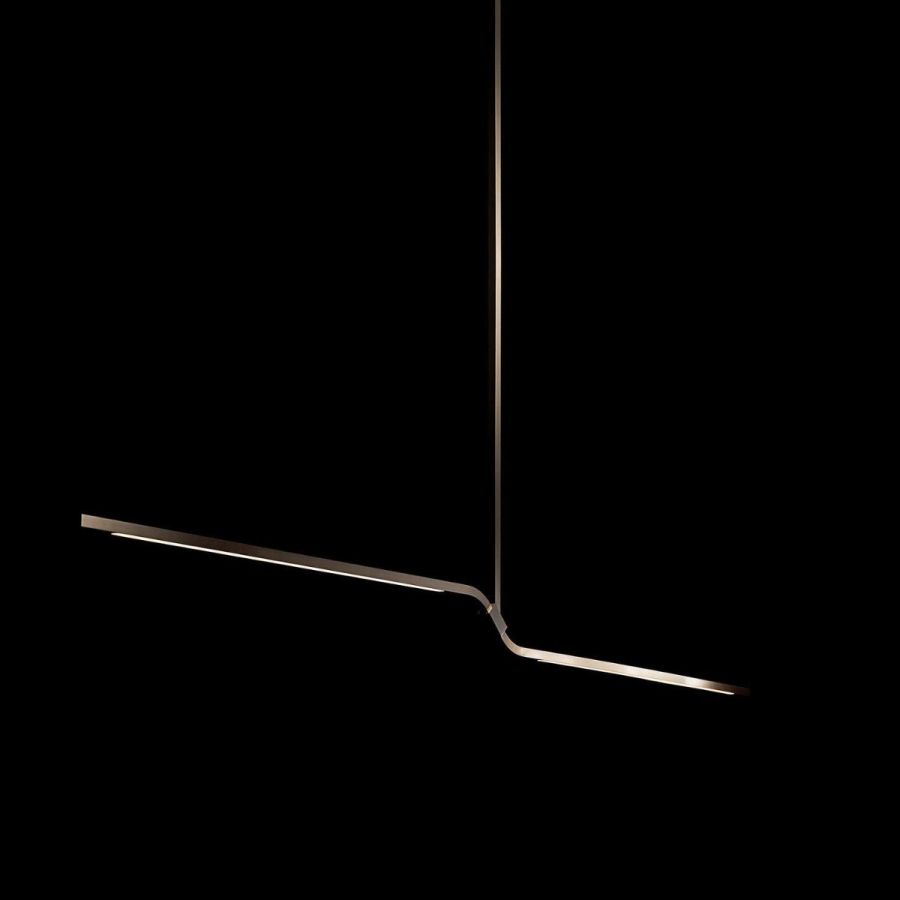

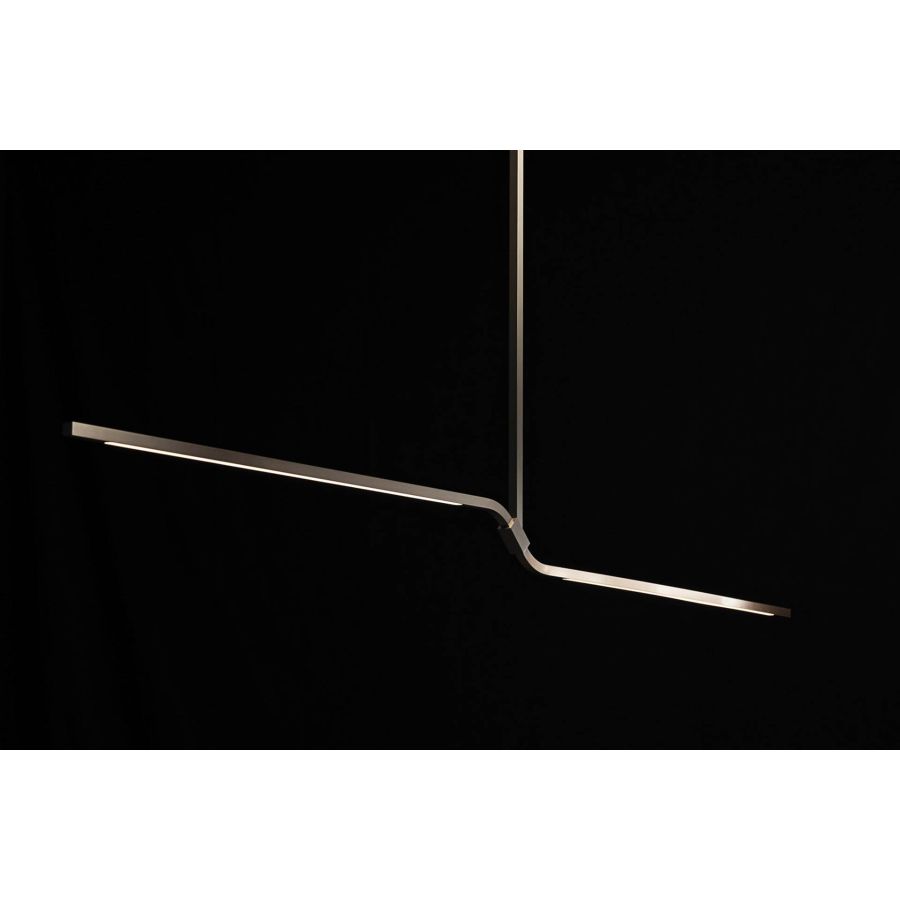

Material: Hand-finished brass
Diffusers: Satin White Silicone
Color Temperature: 2700 K 90+ CRI
Universal 120v-277v.
Fixtures can be dimmed using 0-10V low voltage dimming controls and wiring.
Uses the Osram OT40W Programmable driver.
Dimmer Not Included
Product Safety Assurance
All Boyd products have been tested and found in compliance by Underwriters Laboratory (UL) or an equivalent nationally recognized testing laboratory. Damp location fixtures are suitable for installation in: interior locations protected from weather but subject to moderate degrees of moisture, such as bathrooms; or protected locations under canopies, marquees and roofed open porches. Wet location fixtures are suitable for installation where the fixture is subject to saturation with water or other liquids, or where the fixture is mounted in an unprotected location and directly subjected to the weather.
Canadian Standards Certification (CSA) - Many products are UL certified to meet CSA standards. Please contact to clarify for details.
